TouchStar Access Control Solutions

ievo Ultimate Biometric Reader

Security solutions as individual as you are.

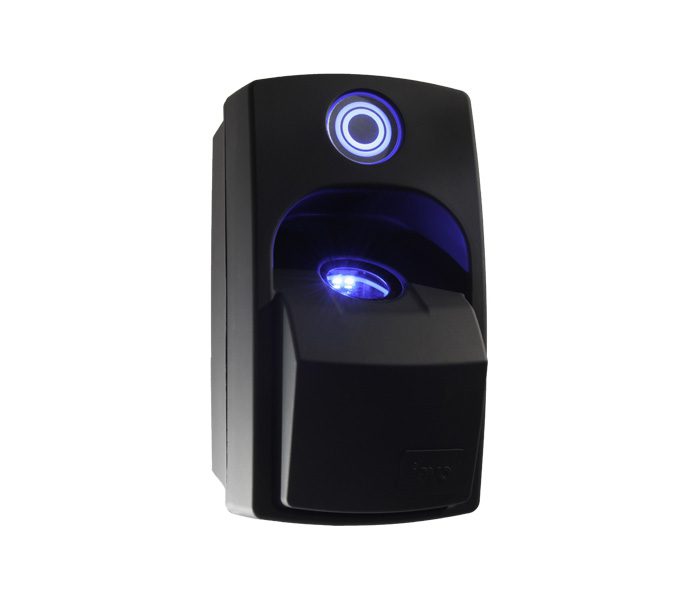

PP1-IEVO-SEB Ultimate Biometric Reader

ievo ultimate™ is the perfect ‘all round’ fingerprint scanner which is suitable for both internal and external environments, depending on how you wish to use it.

IEVO Ultimate Biometric Reader PP10IEVO-SEB

Features & Benefits

IP 65 Rated

The ultimate™ fingerprint reader is IP (Ingress Protection) rated to industry standard 65. This means that the ultimate™ is water and dust tight, therefore it can be installed internally or externally without compromising its efficiency or reliability. The IP rated case enables ievo ultimate™ to be used in the harshest of environments, including extreme rain, wind, snow and direct sunlight.



Dirt, Oil, Grease

The ievo ultimate™ sensor enables a fingerprint image to be obtained even through levels of dust, dirt, oils, creams or cosmetics present on the skin and also through some types of latex gloves. Problem fingerprints that have been previously rejected by other biometric readers will be successfully scanned.

Vandal Resistant

Most other existing biometric access control reader’s only need a standard screw driver to remove them, causing not only security concerns but problems regarding data protection as most other readers store data on the reader itself. This is not how a security product should work. The ultimate™ contains no controllers or relays within the product, instead they are installed up to 5 metres away on the secured side of the door, preventing unwanted access by unknown personnel. Ultimate™ is also manufactured in polycarbonate ABS with a reinforced, toughened glass sensor giving it that extra robustness.

Spoof and Live-ness Detection

Recently certified for Government use in the UK by the Centre for the Protection of National Infrastructure (CPNI) the ievo ultimate™ cannot be duped by fake fingerprints. This is due to the live-ness detection feature which checks for the presence or absence of live blood flow in the finger when presented to the fingerprint sensor. Therefore, the ultimate™ is perfect for high security projects such as cash offices, server rooms or National banks.

Specifications

CPU: ARM9

Memory:

RAM 16mb
FLASH 32mb

FRR: < 0.1%

FAR: < 0.00001%

Identification Speed: < 0.7 sec

Template Capacity: 1:N 8000

Log Capacity: 200,000

Voltage: 12v DC

Current Draw: < 600mA

Output: Wiegand

Communication:

TCP/IP IEVO/
Controller OEM
Dependent

Operating Temp.: -20~70ºC (-4~158ºF)

IP Rating: IP65

Power Indicator: LED in Piezo Button

Certifications: CE, FCC, RoHS,

Dimensions Surface:

W:76mm
H:137mm
D:93mm
Flush:
W:119mm
H:153mm
D:47mm recessed
Visual:
D: 45.5mm
