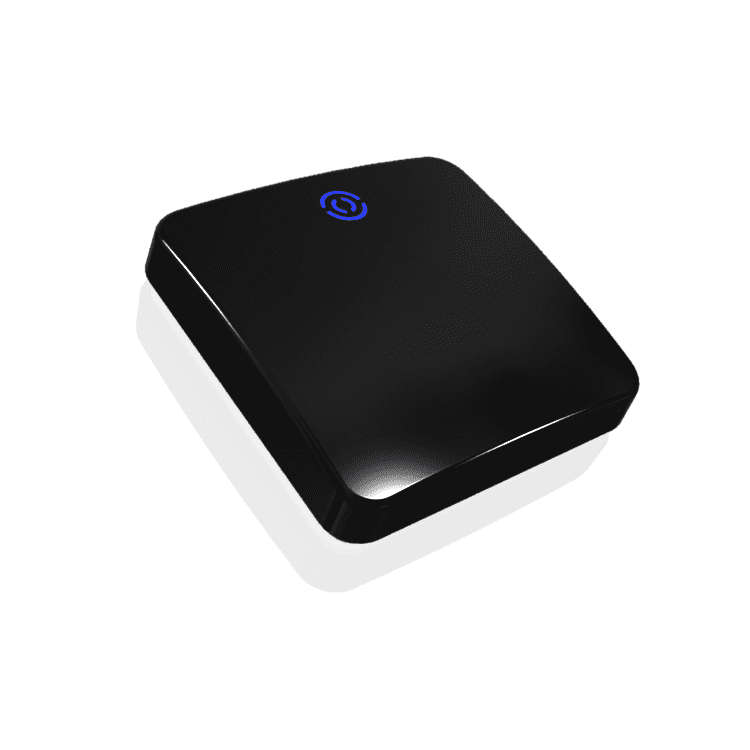

The RX1 Proximity Reader delivers sleek, high‑performance card and fob access control.
The RX1 Proximity Reader provides reliable, high-performance card and fob access control in a compact, surface-mounted design. Built for durability and adaptability, it ensures secure, efficient entry management while integrating seamlessly with your TouchStar system.
Proximity card & fob support – Compatible with 125 kHz and 13.56 MHz technologies for flexible credential options.
Indoor & outdoor‑ready (IP65 rated) – With a rugged polycarbonate/ABS housing and weather sealing to handle tough conditions
RGB LED status indication – Customisable multi‑colour LED feedback for access levels, migration mode or corporate branding.
Tamper and security integration – Tamper output, buzzer, multiple data outputs (Wiegand / Clock & Data) support secure installations
Slim profile, clean finish – 87 mm x 87 mm x 21 mm housing with “floating” back‑plate aesthetic, mounting directly to plain walls or back boxes
Flexible output formats – Supports Wiegand, Clock & Data and TTL connections for broad system compatibility
Industry‑grade build & integration – Designed for commercial use with durable build materials and full integration with TouchStar systems.
Dimensions: 87mm x 87mm x 21mm (3.4 x 3.4 x 0.8 inches)
Housing: Moulded polycarbonate/ABS
Mounting: Wall surface
+Vdc Supply Voltage (+5Vdc to +16Vdc)
DATA1 / CLK Wiegand or Clock/Data Output
DATA0 / DAT Wiegand or Clock/Data output
GREEN green LED control input
RED red LED control input
BUZZER Buzzer control input
TMPR / CP Tamper or Card Present output
OV Supply voltage ground
TTL TX TTL transmit line
TTL RX TTL receive line
Operating Temperature: – 20°C to + 60°C
Humidity: 0 – 100% RHNC
Ingress Protection: IP65
Voltage: +5Vdc to +16Vdc
Current: 250mA Typical
Data Voltage: Rest>4Vdc / Active<1Vdc
Data Output: Wiegand, Clock & Data
Indication: 1 RGB LED
Sounder: Integral speaker
