Redefining employee time and attendance with cutting-edge contactless data capture technology.

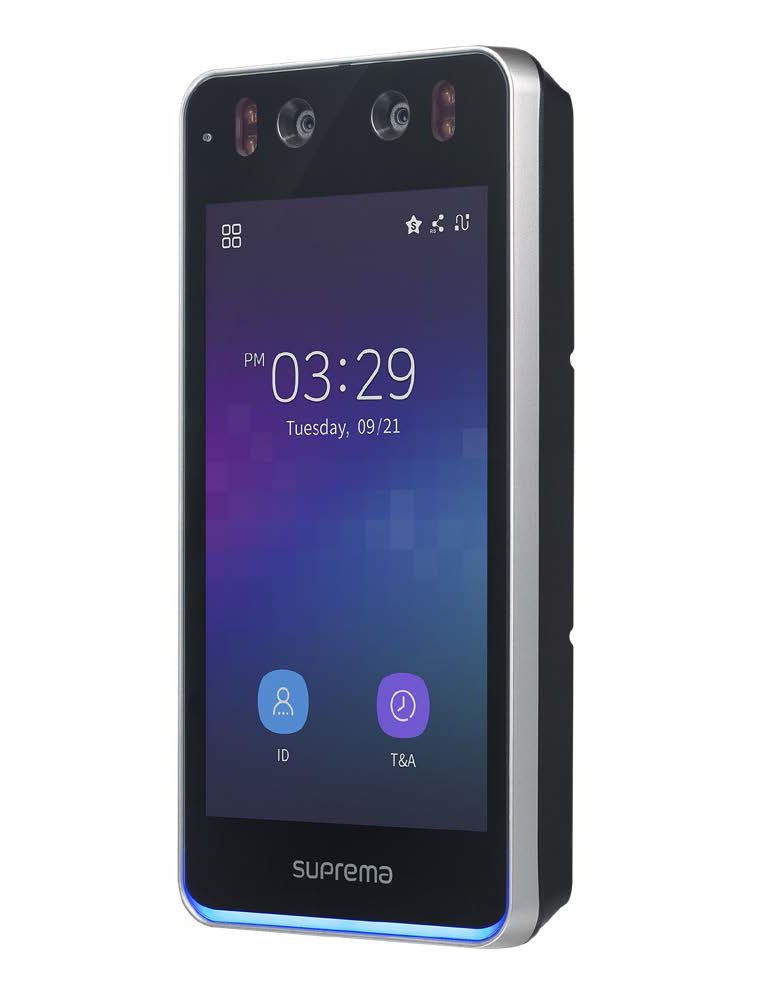

Experience a revolution in employee clocking activity with the Suprema BioStation 3. Powered by cutting-edge technology, this enterprise-ready, class-leading multimodal device not only boasts a small footprint but also offers an extensive array of features that establish an unparalleled standard for enhanced data capture across the industry.

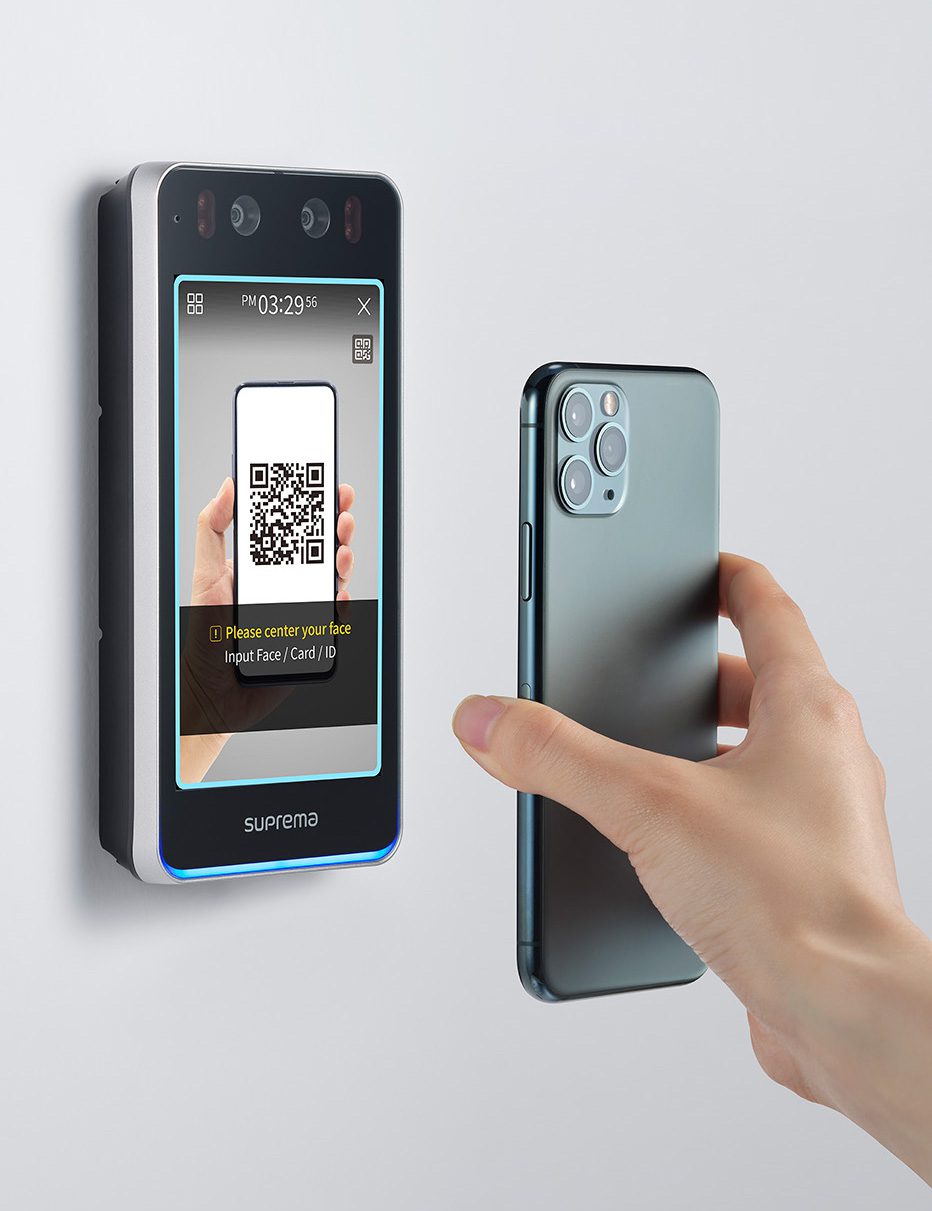

The Suprema BioStation 3 seamlessly integrates various contactless data capture methods, including face recognition, mobile access, QR codes, barcodes and RFID. These contactless data capture methods provide a robust means of capturing your employees’ working hours. No matter the scale of your operation, from small offices to large multi-site environments, this slim and compact design is universally compatible with any type of door.
Driven by the potential of AI-optimised facial recognition the BioStation 3 achieves unprecedented speed with an astonishing 0.2 second matching speed for rapid and intelligent pass-through. An invaluable asset for any biometric clocking system, the BioStation offers user friendly self-enrolment for face credentials and maintains exceptional compatibility and reliability with all facial variations and ethnicities. With robust protection measures, you can be rest assured that this reader is spoof proof, keeping you one step ahead of potential security breaches.
At the core of the BioStation design is a commitment to safeguarding of data and user privacy, adhering to the highest industry standards. Boasting ISO/IEC 27001 and 27701 certifications, this terminal guarantees the protection of biometric data and upholds user privacy. Meticulously designed to comply with rigorous GDPR regulations it is embedded with Secure Element (SE) and Secure Boot technologies, effectively fortifying itself against cyberattacks, ensuring unwavering security.

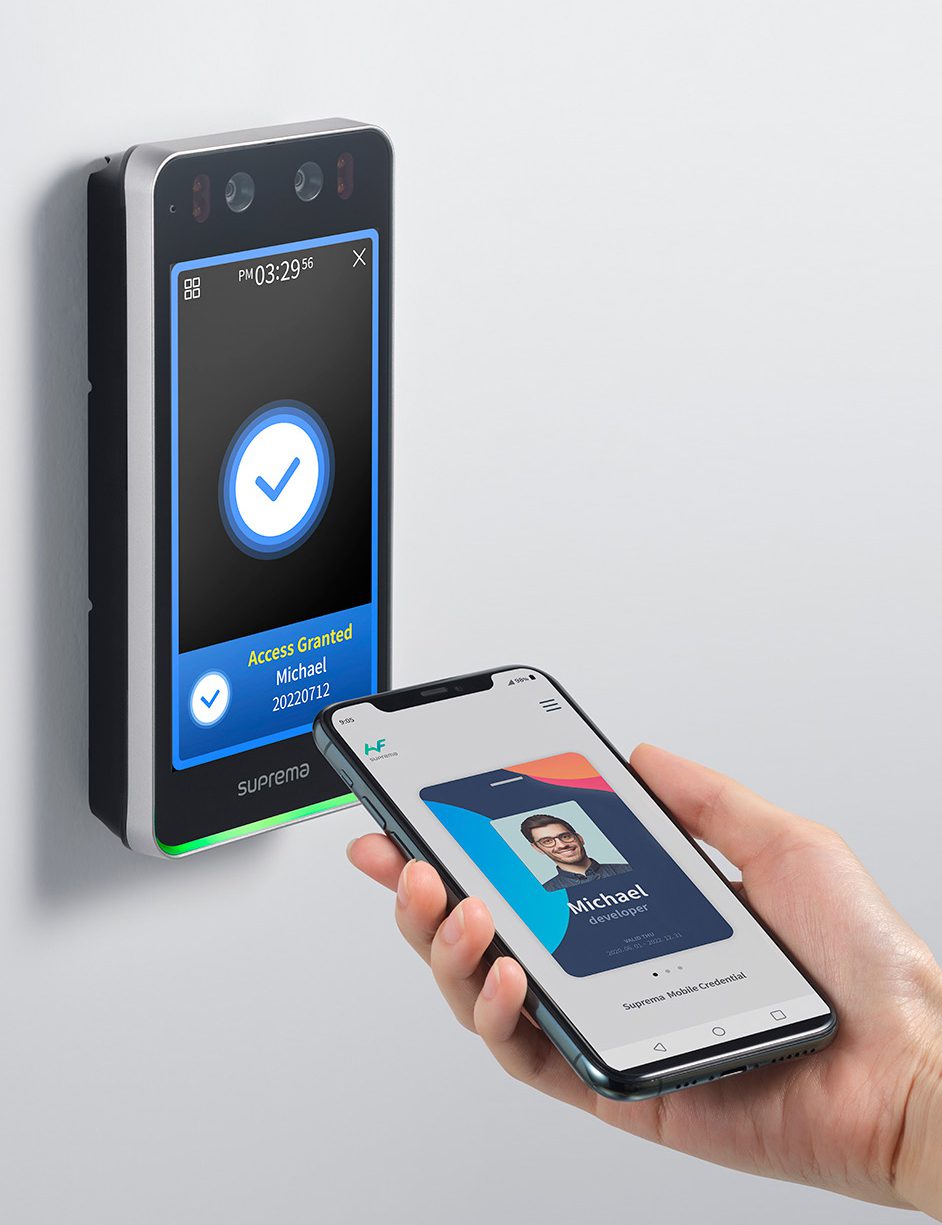

Furthermore, the eagerly anticipated ‘Face Template on Mobile’ credential;, empowers users to retain complete control over their data and privacy. By storing their face profile directly on their mobile devices, individuals can prevent their biometric data from being stored in company databases, providing an added layer of privacy and peace of mind.
The Suprema BioStation 3 is Fastlane enabled. Seamlessly integrating with multiple Time and Attendance system applications, the BioStation 3 offers a powerful back-end solution. Fastlane’s cloud-based platform effortlessly processes and presents data from a range of devices through a single interface, streamlining development and enabling faster rollouts.
BIOMETRIC: Face
RF OPTION: 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV3(1), FeliCa
RF READ RANGE(2): EM/HID iCLASS/MIFARE: 30 mm, HID Prox/DESFire: 25 mm, FeliCa: 15 mm
MOBILE: NFC, BLE
BARCODE AND QR CODE: Supported(3)
CPU: 1.5GHz Quad Core
MEMORY: 132GB Flash + 4GB RAM
CRYPTO CHIP: Supported
LCD TYPE: 5.5” IPS color LCD
LCD RESOLUTION: 720 x 1280 pixels
SOUND: 16-bit
OPERATING TEMPERATURE: -20°C – 50°C (-4°F – 122°F)
OPERATING HUMIDITY: 0% – 80%, non-condensing
CAMERA: 2MP x 2EA (Visual, IR)
DIMENSIONS (W X H X D): 82.5mm x 171mm x 23.4mm
WEIGHT: Device: 370g
Bracket (Including washer and bolt): 90g
INGRESS PROTECTION (IP): IP65
VANDAL PROOF (IK): IK06
CERTIFICATES: KC, CE, UKCA, FCC, RCM (Compliance: RoHS, REACH, WEEE)
RECOGNITION DISTANCE: 0.6 – 1.0 m (23.6” – 39”)
RECOGNITION HEIGHT: 1.4 – 1.9 m (55.1” – 74.8”)
MATCHING SPEED: Less than 0.2 sec
LIVE FACE DETECTION (ANTI-SPOOFING): Supported
MAX. USER: 100,000(4)
MAX. CREDENTIAL (1:N): Face: 50,000
MAX. CREDENTIAL (1:1): Face: 100,000 / Card: 100,000 / PIN: 100,000
MAX. TEXT LOG: 5,000,000
MAX. IMAGE LOG: 50,000
ETHERNET: 10/100/1000 Mbps, auto MDI/MDI-X
WI-FI: –
RS-485: 1ch Host or Slave (Selectable)
WIEGAND: 1ch Input and 1ch Output
TTL INPUT: 3ch Inputs
RELAY: 1 Relay
POE: –
INTERCOM: Supported
RTSP (REAL TIME STREAMING PROTOCOL): Supported
USB: USB 2.0 (Host)
EXTENDED USB: Supported
TAMPER: Supported
POWER: DC 12V 2.5A, DC 24V 1.2A
(1) DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with BioStation 3.
(2) RF read range will vary depending on the installation environment.
(3) Requires a separate license.
(4) Number of users registered without having any credential data.
BIOMETRIC: Face
RF OPTION: 125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV3(1), FeliCa, iCLASS SE/SR/Seos
RF READ RANGE(2): EM/HID iCLASS/MIFARE: 30 mm, HID Prox/DESFire: 25 mm, FeliCa: 15 mm
MOBILE: NFC, BLE
BARCODE AND QR CODE: Supported(3)
CPU: 1.5GHz Quad Core
MEMORY: 32GB Flash + 4GB RAM
CRYPTO CHIP: Supported
LCD TYPE: 5.5” IPS color LCD
LCD RESOLUTION: 720 x 1280 pixels
SOUND: 16-bit
OPERATING TEMPERATURE: -20°C – 50°C (-4°F – 122°F)
OPERATING HUMIDITY: 0% – 80%, non-condensing
CAMERA: 2MP x 2EA (Visual, IR)
DIMENSIONS (W X H X D): 82.5mm x 171mm x 23.4mm
WEIGHT: Device: 380g
Bracket (Including washer and bolt): 90g
INGRESS PROTECTION (IP): IP65
VANDAL PROOF (IK): IK06
CERTIFICATES: KC, CE, UKCA, FCC, RCM (Compliance: RoHS, REACH, WEEE)
RECOGNITION DISTANCE: 0.6 – 1.0 m (23.6” – 39”)
RECOGNITION HEIGHT: 1.4 – 1.9 m (55.1” – 74.8”)
MATCHING SPEED: Less than 0.2 sec
LIVE FACE DETECTION (ANTI-SPOOFING): Supported
MAX. USER: 100,000(4)
MAX. CREDENTIAL (1:N): Face: 50,000
MAX. CREDENTIAL (1:1): Face: 100,000 / Card: 100,000 / PIN: 100,000
MAX. TEXT LOG: 5,000,000
MAX. IMAGE LOG: 50,000
ETHERNET: 10/100/1000 Mbps, auto MDI/MDI-X
WI-FI: 802.11 b/g/n 2.4GHz
RS-485: 1ch Host or Slave (Selectable)
WIEGAND: 1ch Input and 1ch Output
TTL INPUT: 3ch Inputs
RELAY: 1 Relay
POE: IEEE 802.3 at compliant
INTERCOM: Supported
RTSP (REAL TIME STREAMING PROTOCOL): Supported
USB: USB 2.0 (Host)
EXTENDED USB: Supported
TAMPER: Supported
POWER: DC 12V 2.5A, DC 24V 1.2A
(1) DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with BioStation 3.
(2) RF read range will vary depending on the installation environment.
(3) Requires a separate license.
(4) The number of users registered without having any credential data.
