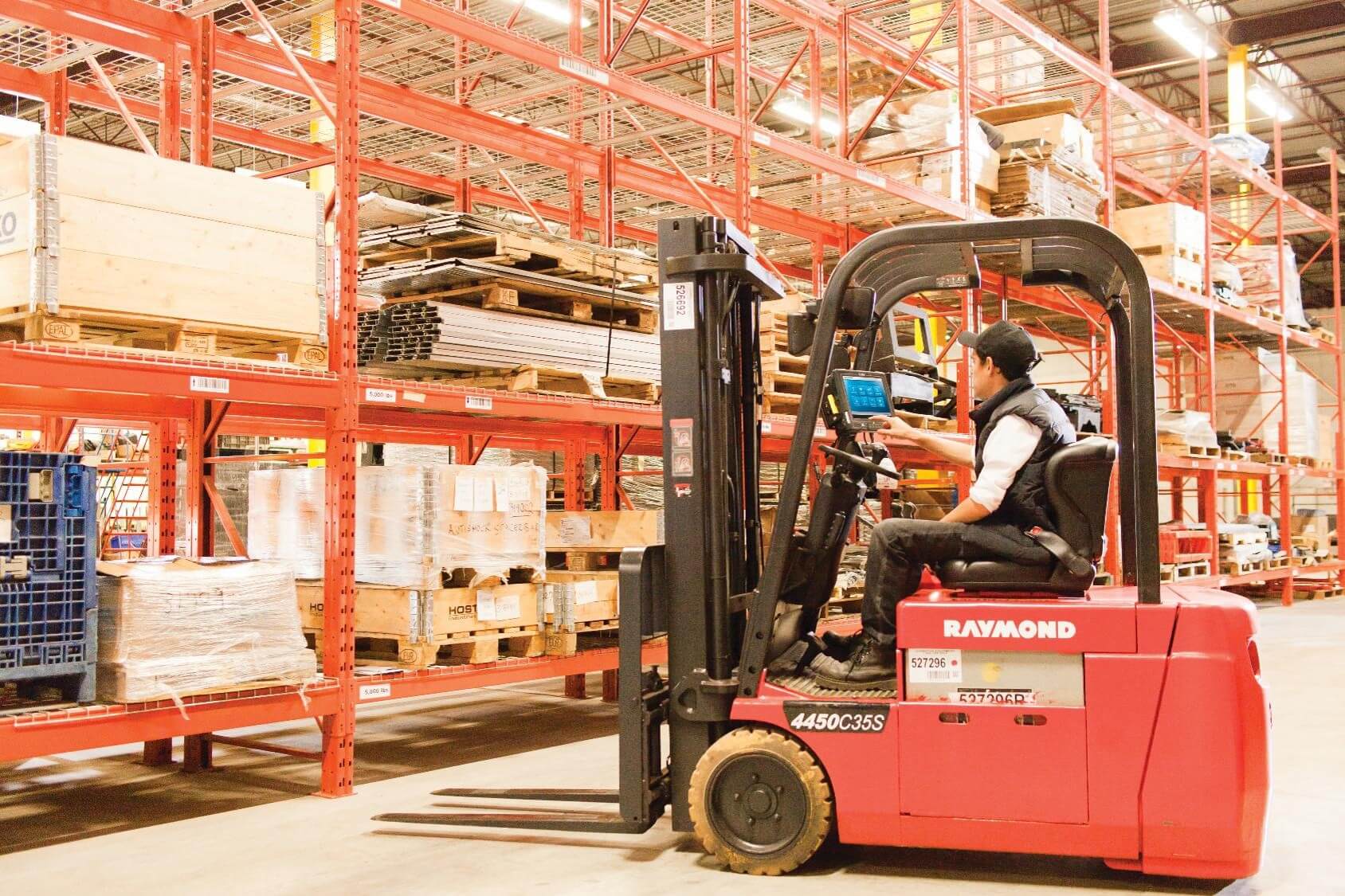

Engineered for forklifts and material-handling vehicles, the VC80x delivers fast, reliable computing power in the toughest warehouse and production environments.
The Zebra VC80x is a compact, ultra-rugged vehicle-mounted computer engineered for fast-paced industrial environments. Designed for forklifts, reach trucks, clamp trucks and other material-handling vehicles, it brings the power of Android to your warehouse or manufacturing floor—helping teams move inventory faster, with greater accuracy and complete operational visibility.
Ultra Rugged Construction: Built to withstand constant vibration, heavy impacts, temperature extremes and harsh industrial conditions, ensuring reliability shift after shift.
Android Platform for the Enterprise: Runs Android with Zebra’s mobility DNA tools, giving operators a familiar, modern interface and simplifying application migration from legacy Windows systems.
High Visibility Touch Display: The bright 8" or 10" screen provides clear, easy-to-read visuals in indoor and outdoor environments, including direct sunlight or cold-store applications.
Flexible Data Capture Options: Pair the VC80x with handheld scanners, long-range imagers or wearable devices for fast, accurate picking, put-away, replenishment and cross-docking workflows.
Optimised for Vehicle Mounting: Purpose-built for forklifts and material-handling equipment with a compact footprint, quick-release mount and optional external keyboard for high-volume input.
Reliable Wireless Connectivity: Dual-band WiFi and optimised antenna design ensure stable, high-performance connectivity across large industrial facilities—minimising dead zones and dropouts.
Cold Storage Ready: Optional heated configurations allow the VC80x to operate in freezers or cold rooms without display condensation or performance loss.
Cost Effectively Upgrade to Next Generation Truck Mounted Technology
Whether you’re looking for new hardware or simply want to chat about your options feel free to get in touch.
Rugged Mobile Computers
Rugged Wearables FAQ
Rugged wearables FAQ: get answers on durability, deployment & performance in extreme envir...
Rugged Mobile Computers
An Introduction to Rugged Mobile Computers
Our range of rugged mobile computers is designed to meet diverse operational needs, each devic...
Rugged Mobile Computers
Damart Rugged Device Case Study
How Damart successfully managed a rugged mobile device upgrade to minimise downtime, reduce co...
Rugged Mobile Computers
ELIQUO Choose TouchStar for Rugged Integration
ELIQUO HYDROK select TouchStar for a rollout of the latest rugged tablets and handheld computi...
10.9 in. W x 9.4 in. H x 3.5 in. D 276 mm W x 238 mm H x 90 mm D
8.1 lbs./3.7 kg
External QWERTY and AZERTY, optional L-mount
Internal power supply 12-48V nominal, designed for forklift power
Rechargeable UPS battery for operation during power loss
10.4 in. color XGA (1024 x 768) LCD; 24-bit color depth; choice of 400 or 1,000 NITs; LED backlight
Resistive touchscreen with passive stylus or finger operation
Freezer version: integrated touchscreen heater evaporates external condensation when moving out of and into freezers
Six (6) programmable macro keys; volume; brightness; blue key for 2nd level functions; on/off key
Standard sealed and secured connectors: 2 RS-232 serial ports; 1 standard USB port; 1 powered USB port; 1 3.5 mm audio jack; optional Ethernet port via adapter Indicators Power LED; warning LED; blue key status LED
Handheld scanners and imagers connected via USB, RS-232 or Bluetooth; SSI support for DS36xx Series scanners and RS6000 Bluetooth scanner
Quick release mount; standard RAM mounts; adapters for legacy vehicle computer mounts
Qualcomm 8056 1.8 GHz hexa-core 64 bit with power optimisation, with 4 GB RAM
Android 7.1.2 (Nougat) – AOSP; GMS – select configurations
32 GB eMMC (pSLC)
DataWedge with SSI scanner support; Workforce Connect PTT Express; Ivanti Velocity powered by Wavelink
Workforce Connect PTT Pro, SOTI MobiControl
-22° to 122° F/-30° to 50° C
-40° to 140° F/-40° to 60° C
5% to 95% non-condensing (standard version); 5% to 95% condensing (freezer version with internal heating)
IP66
-22° to 122° F/-30° to 50° C
IEC 60721-3-5M3; MIL-STD 810G; Method 514.6; MIL-STD 810G; Method 516.6
48 hours of 5% solution at 35° C
MIL STD 810-G, Method 505.5, Procedure I
Motion (accelerometer); temperature; ignition
±20kV air discharge, ±10kV direct discharge
802.11 a/b/g/n/ac/k/r
Internal or external, software switchable
Class 2, Bluetooth v4.0 (Bluetooth® Smart technology); Bluetooth Wideband support HFPv1.6
High volume 87 dBA speaker
External optional speaker/microphone
Mobility DNA is available on Android only. Features may vary by model and a Support Contract may be required. To learn what solutions are supported, please visit: https://developer.zebra.com/mobilitydna
