A compact, dependable desktop printer designed to deliver fast, accurate label printing for offices, retail, healthcare, and light industrial environments.

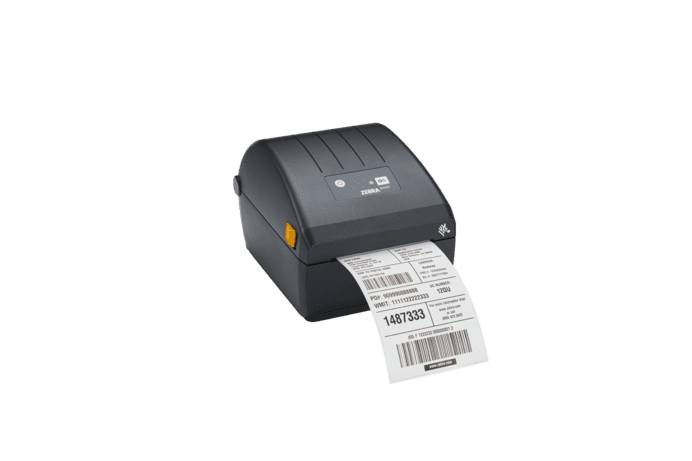

The Zebra ZD230 desktop printer provides a simple, reliable solution for organisations that need consistent, high-quality printing without the complexity of larger industrial devices.
Designed for businesses that require fast label production, the ZD230 is perfect for shipping, inventory management, product identification, and point-of-sale tasks. Its compact footprint, intuitive setup, and enterprise-ready reliability ensure teams can focus on productivity rather than printer troubleshooting.
Compact & Space-Saving: Small footprint fits easily on desks, counters, or workstations without cluttering your workspace.
Reliable Printing Performance: Fast, precise thermal printing supports your everyday label, tag, and receipt needs.
Easy to Use: Intuitive setup and simple media loading reduce downtime and simplify day-to-day operations.
Flexible Connectivity: USB and optional network connectivity allow seamless integration with existing office or retail systems.
High-Quality Output: Produces sharp, clear barcodes, text, and graphics, ensuring scan accuracy and professional appearance.
Energy-Efficient Design: Low power consumption supports sustainable, cost-effective operation.
Every TouchStar recommended printer can be specified for the specific needs of your workforce, ensuring the perfect fit for any operation. With decades of expertise, our team will assess your requirements and environment to recommend the ideal print solution.
Rugged Mobile Computers
Rugged Wearables FAQ
Rugged wearables FAQ: get answers on durability, deployment & performance in extreme envir...
Rugged Mobile Computers
An Introduction to Rugged Mobile Computers
Our range of rugged mobile computers is designed to meet diverse operational needs, each devic...
Rugged Mobile Computers
Damart Rugged Device Case Study
How Damart successfully managed a rugged mobile device upgrade to minimise downtime, reduce co...
Rugged Mobile Computers
ELIQUO Choose TouchStar for Rugged Integration
ELIQUO HYDROK select TouchStar for a rollout of the latest rugged tablets and handheld computi...
Print methods: Thermal Transfer or Direct Thermal
• ZPL and EPL programming languages
• Single LED status indicator
• Single button for feed/pause
• USB connectivity
• OpenACCESS™ for easy media loading
• Dual-wall frame construction
• ENERGY STAR qualified
• ZebraDesigner Essentials – easy label design tool free at
www.zebra.com/zebradesigner
10.5 in. L x 7.75 in. W x 7.5 in. H
267 mm L x 197 mm W x 191 mm H
8.6 in. L x 6.9 in. W x 5.9 in. H
220 mm L x 176 mm W x 151 mm H
3.7 lbs./1.7 kg
2.5 lbs./1.1 kg
203 dpi/8 dots per mm
128 MB Flash; 128 MB SDRAM
4.09 in./104 mm
6 in./152 mm per second or 4 in./102 mm per second
Movable black mark sensor, limited range from center to left side
Fixed off-center gap sensor
ZPL II; EPL 2; XML
39.0 in./991 mm
1.00 in./25.4 mm to 4.4 in./112 mm
5.00 in./127 mm outer diameter
Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in.
(25.4 mm) standard, 1.5 in. (38.1 mm) using optional adapters
0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm) max. (tear-off mode only)
Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m)
984 ft. (300 m)
• 1:4 ribbon to media (300 m)
• 1:1 ribbon to media (74 m)
1.33 in./33.8 mm – 4.3 in./109.2 mm
• 300 meter ribbon 1 in./25.4 mm
• 74 meter ribbon 0.5 in./12.7 mm
40° to 105° F/4.4° to 41° C
-40° to 140° F/-40° to 60° C
10% to 90% non-condensing
5% to 95% non-condensing
Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified
Factory installed peeler or cutter
• Factory-installed USB and Ethernet
• Factory-installed USB and Bluetooth 4.1
• Factory-installed USB 802.11ac Wi-Fi and Bluetooth 4.1
None
2:1 and 3:1
Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code
Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
16 resident expandable ZPL II bitmap fonts
Two resident scalable ZPL fonts
Five resident expandable EPL2 fonts
Native open-type font support
Unicode compliant for multi-language, on demand thermal printing
50 MB user available non-volatile memory
8 MB user available SDRAM
For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies to ensure consistent, optimized performance for your Zebra printer.
IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus
CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
Zebra OneCare™ maintenance plans provide peak performance and device uptime while protecting your critical operations and your printers with defined service levels. For more information go to
www.zebra.com/zebraonecare
Comprehensive Coverage, including printheads, normal wear and accidental breakage
Priority access 8×5 live technical support and software updates
Three-day depot repair turnaround time plus free return ground shipping
Online Return Material Authorization (RMA) support
Note: Service availability may vary by region
Link-OS™ Basic printer operating system
This printer is supported by a core set of Print DNA Basic applications and capabilities.
Enhances out-of-the-box experience by enabling quick and easy printer configuration
Makes designing and printing industry-standard and compliant labels simple, including fixed or variable data
On-printer apps allow Zebra printers to use legacy languages normally associated with other printer brands
For more information, please visit
www.zebra.com/printdna
ZD200 Series printers are warranted against defects in workmanship and materials for a minimum period of 2 (two) years from the date of shipment. Warranty varies by region. For complete warranty details, please visit
www.zebra.com/warranty
