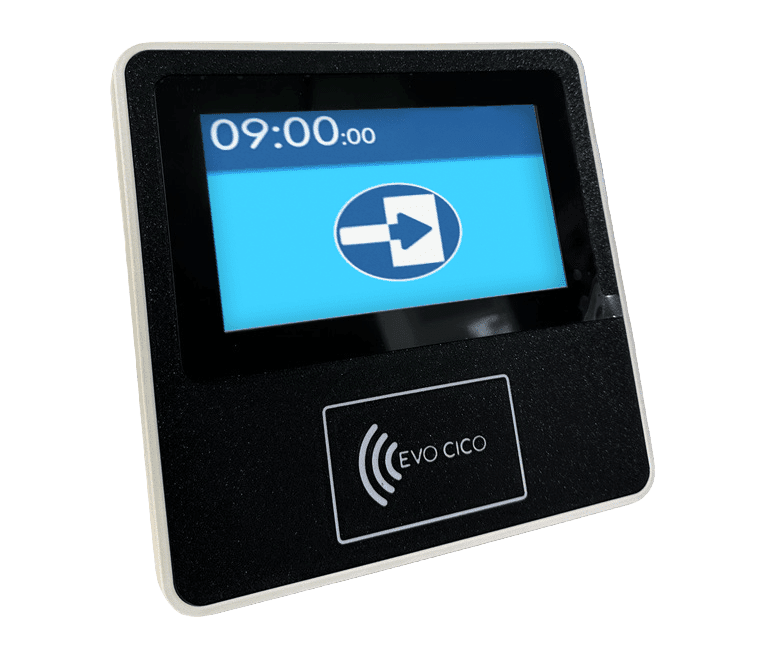

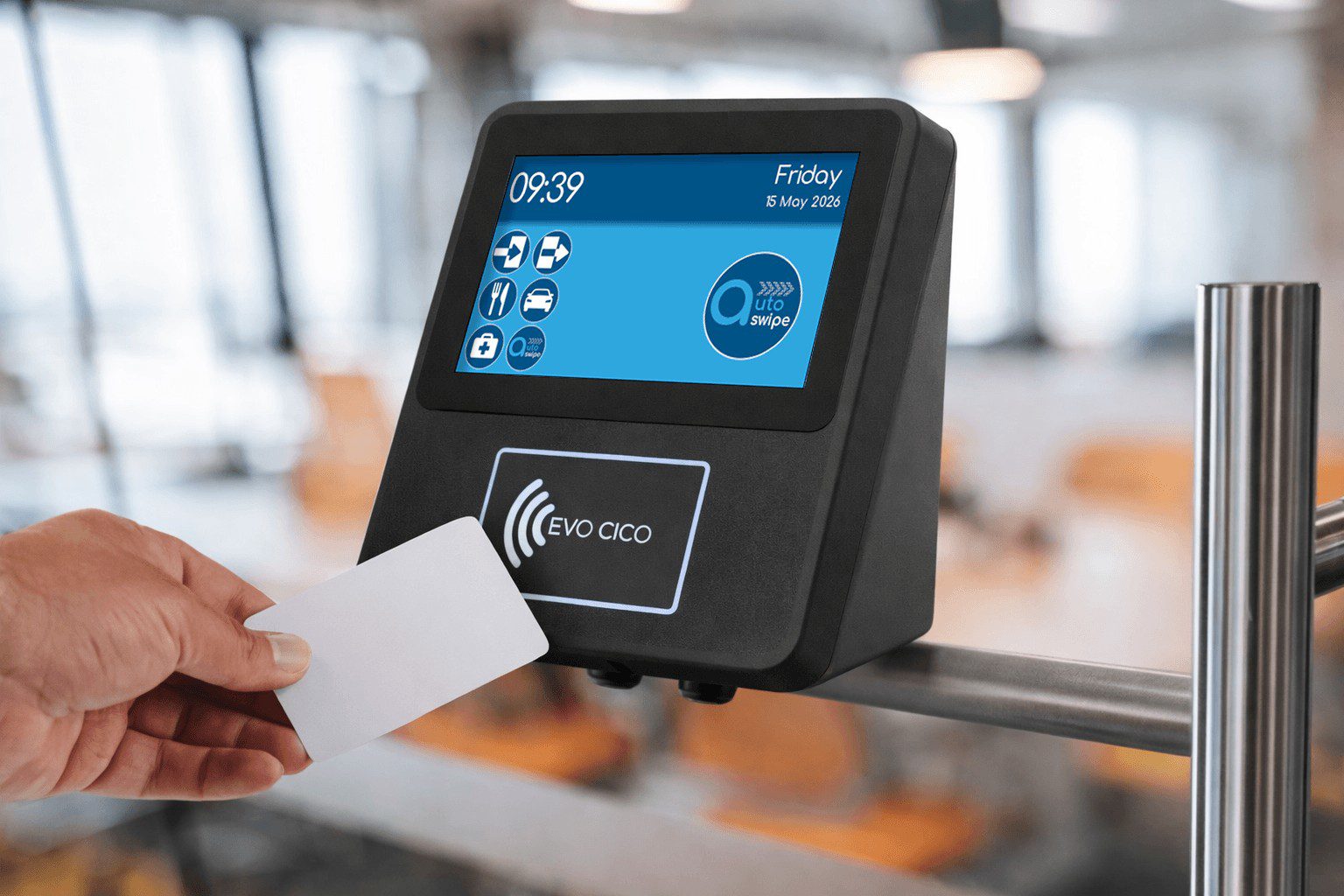

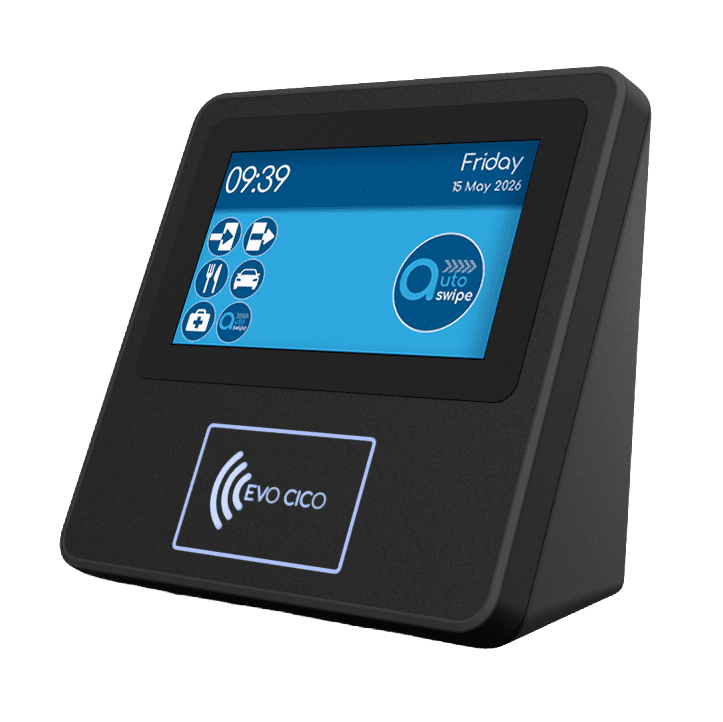

Evo CiCo by Touchstar is a next-generation employee time clock built to support the diverse needs of the modern enterprise.
Evo CiCo by Touchstar is a next-generation employee time clock built to support the diverse needs of the modern enterprise. By combining decades of data capture expertise with a powerful 64-bit processing engine and a vibrant 7″ touch interface, Evo CiCo is designed to deliver precision and reliability wherever it is deployed.
High-performance hardware engineered for seamless integration with your existing infrastructure.
Intuitive 7" Touch Interface: A wide-screen, full-colour capacitive touch display provides a vibrant interface, reducing user errors and simplifying the clocking process.
Enterprise-Grade Build: Housed in a flame-retardant (UL94 V-0) casing, the terminal is designed for maximum uptime in demanding industrial sites.
Mission-Critical Reliability:Integrated PoE/PoE+ with an internal 60-minute UPS battery backup guarantees data security even during power interruptions.
High-Speed Processing: Powered by a 2.2GHz Quad Core ARM Cortex 64-bit engine for near-instantaneous authentication and data transfer.
Tailored Data Capture Options:
Evo CiCo adapts entirely to your operational environment. Whether you are leveraging existing employee credentials or upgrading your workforce ID system, the hardware supports multiple data capture configurations:
Proximity & RFID Reading: Ideal for fast-paced environments, providing secure, contact-free clocking via standard proximity cards or fobs.

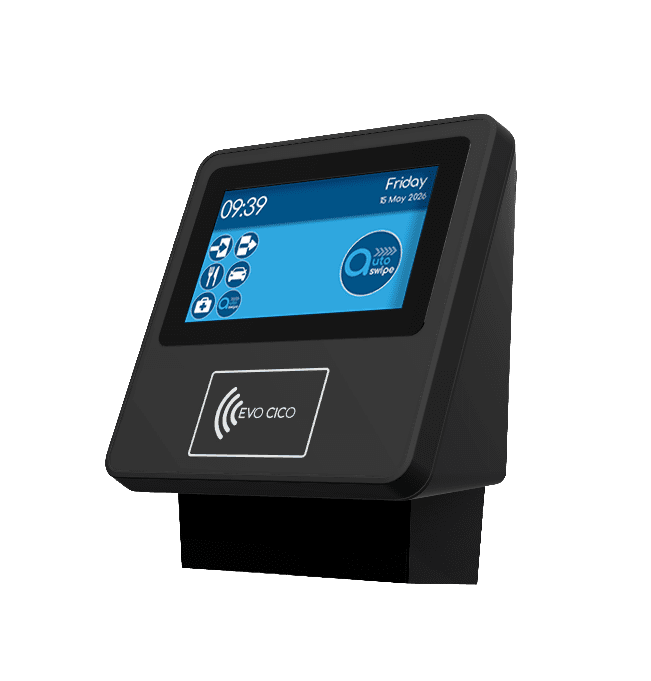

Integrated Barcode Scanning: Available in a dedicated barcode variant, this option allows seamless integration with existing barcode ID badges or keyfobs, eliminating the need to reissue credentials.
Pin Verification: Offers a reliable backup or standalone clocking option via the robust integrated keypad.
Evo CiCo is fully Fastlane enabled, offering seamless integration with Touchstar’s Fastlane web-based platform. Whether deployed on-premises or through our cloud-based infrastructure, the terminal ensures your time and attendance data is accurate, secure, and accessible in real-time. It is the ultimate tool for securing the logistics of your people and your products.
Unlike standard clocking machines, Evo CiCo offers a blend of aesthetic appeal and industrial-grade durability, making it the “fit for purpose” choice across multiple sectors:
Warehouse & Logistics: Built to withstand the physical rigours of high-volume, high-traffic environments like distribution centres and rugged depot hubs.
Retail & Corporate: A sleek, sophisticated design that fits seamlessly into modern office or retail environments while streamlining employee interaction.
Manufacturing: The IP65 and IK10 rated casing protects against dust, water, and impact, ensuring continuous operation on the factory floor.
Public Sector & Healthcare: Reliable and secure data capture that ensures regulatory compliance and efficient workforce management.
High performance 2.2GHz Quad Core ARM Cortex 64-bit
8GB Flash + 1GB RAM
8GB Non-volatile data storage
Non-volatile real-time clock/calendar
7” wide screen full colour 1280×720 capacitive touch TFT
Wide-range loudspeaker (3.1W @ 3Ohm)
Multi-colour status LEDs
TCP/UDP 10/100/1000 Mbps (Gigabit), Auto MDI/MDI-X
Dedicated RS232 / RS485 serial communication
Up to 25,000 (10-character credentials)
~8,000 (8-character credentials)
4 x Optically isolated inputs
4 x Volt-free isolated relays
4 channels: Wiegand, Clock/Data, Wand Emulation for Barcode, USB
PoE / PoE+ (IEEE802.3af/at)
Additional separate POE injector available on request
Internal backup (Approx. 60 mins duration)
~450mA – 650mA idle (Typically, up to 1.2A available for accessories)
ASA+PC
Compound matt black or white
220mm (W) x 200mm (H) x 112mm (D)
~1.5kg (Fully configured with UPS)
Easy metal separate 3-point wall-mounting bracket
Rated (When correctly sealed)
(IK) IK10 Rated (Excludes display panel)
UL94 V-0 Rated (Flame retardant)
0°C to +60°C (32°F to 140°F)
CE, UKCA, RoHS, and WEEE compliant
