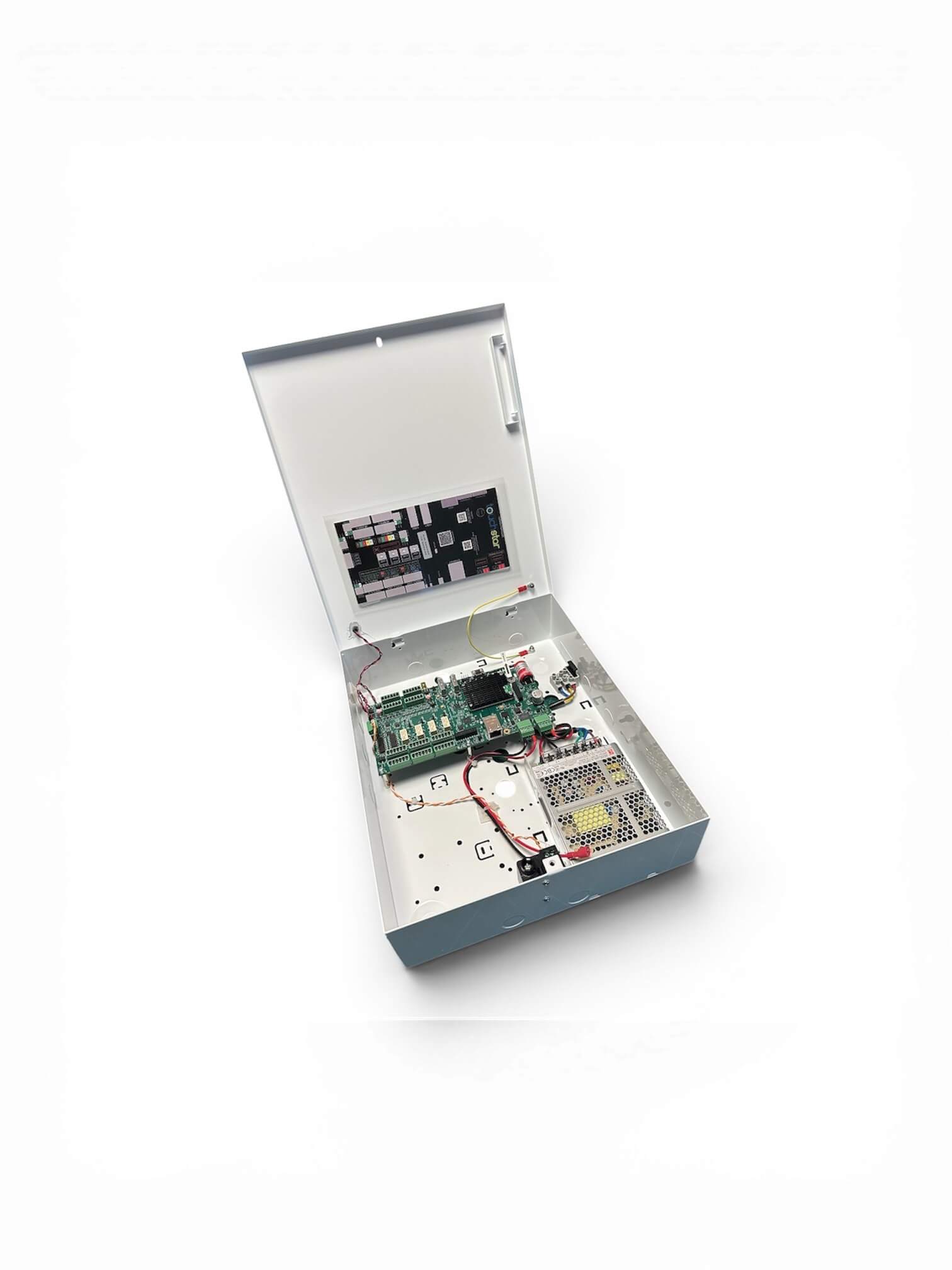

An enterprise door access controller that has the ability to manage up to four doors and connect building security infrastructure—including gates, turnstiles, and barriers—through Touchstar’s Evolution access control software.
The Evolution Access Controller is designed for organisations managing single or multi-site estates where scalable, reliable access control is required. It is suited to environments where security demands are increasing and access control infrastructure needs to expand without adding unnecessary hardware complexity.
Managed through Evolution
The Evolution Access Controller is fully managed throughEvolution,Touchstar’s Access Control Software.
Streamlined Multi-Door Control: Touchstar access controllers manage up to four doors from a single unit, delivering a cost-effective, centralised deployment that drastically reduces hardware footprint and cabling costs. The system also integrates seamlessly with external hardware, including infrared sensors, automated gates, turnstiles, and vehicle barriers.
Seamless Network Integration & High-Capacity Credentials
The system integrates seamlessly into existing Touchstar Evolution software, allowing all connected hardware to be managed from a single platform across one or multiple sites. From this central interface, administrators can configure users, assign permissions, and monitor real-time access activity. This high-capacity, secure architecture pairs advanced multi-credential tracking with robust network connectivity to ensure seamless site administration and perimeter safety.
Network Connectivity: Built with 10/100/1000 Base Ethernet TCP/IP connectivity alongside optional dual-band 2.4GHz and 5GHz WiFi.
On Site Diagnostics: Built in Bluetooth for local engineering diagnostics.
High Capacity Credentials: Supports over 100,000 card credentials with full PIN authentication.
Reader Compatibility: Compatible with Proximity, HID iClass, MIFARE DESFire, magnetic stripe and barcode credentials.
Physical Tamper Protection: Features dual tamper detection using both an enclosure switch and optical sensor.
The Touchstar Evolution Access Controller carries the official Made in Britain trademark, confirming its UK design and manufacture.
This accreditation reflects recognised standards of quality, engineering and reliability while supporting British manufacturing.
We’ll help you configure the Evolution Access Controller for your existing or new system.
0 – 40oC
10/100/1000 base
Ethernet TCP/IP.
Optional: 2.4GHz or 5GHz WiFi.
Optional: Bluetooth for diagnostic purposes.
IP 100-240V AC 3.0/1.5A Max.
OP PSU 13.8VDC 7.5A 103W.
IP PCB 10-15VDC 7.5A Max.
OP PCB +5VDC selection 3A Total.
OP PCB +10-15VDC selection 7A Total.
OP PCB current limited.
Evolution V3 door controller hardware, all card ID lengths of 10 with PIN > 100,000.
Proximity including but not limited to; HID including iClass, Mifare including DESFire. Magnetic strip and BarCode.
Custom decodes possible on request.
2 x Reader inputs / Door controls in dual mode.
4 x Reader inputs / Door controls in quad mode.
Current limited voltage supplies selectable +5V or 10-15V for every 2 inputs/outputs.
Reader interface supports Wiegand, Clock/Data, Wand Barcode as well as PIN pad support.
8 x optically isolated @ < 20mA,
Extra input expansion possible on request.
8 x semiconductor 30V 500mA,
Extra output expansion possible on request.
4 x volt-free relay 2A @ 30V.
Case removal switch and optical sensor
