Redefining employee time and attendance with cutting-edge contactless data capture technology.

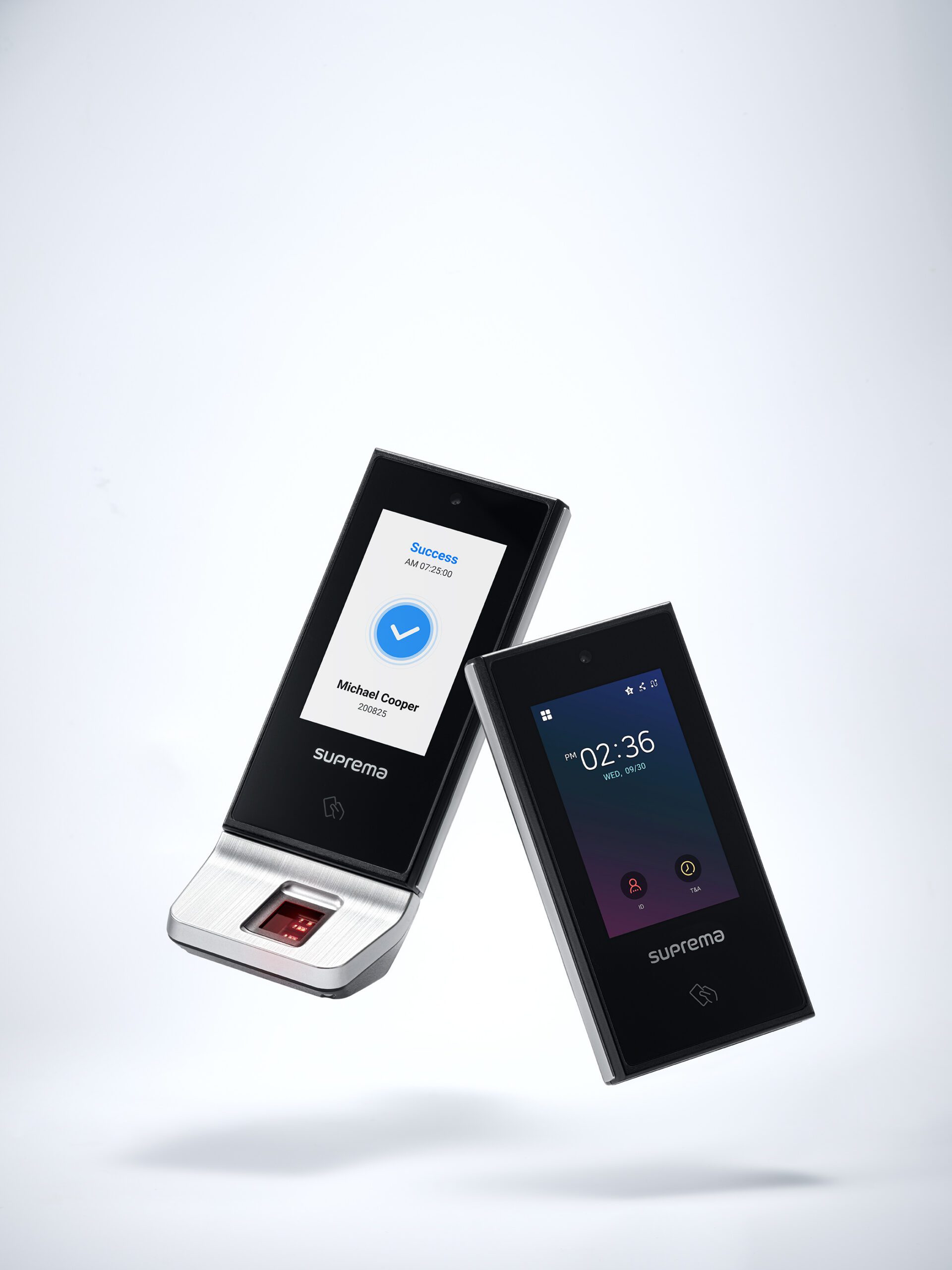

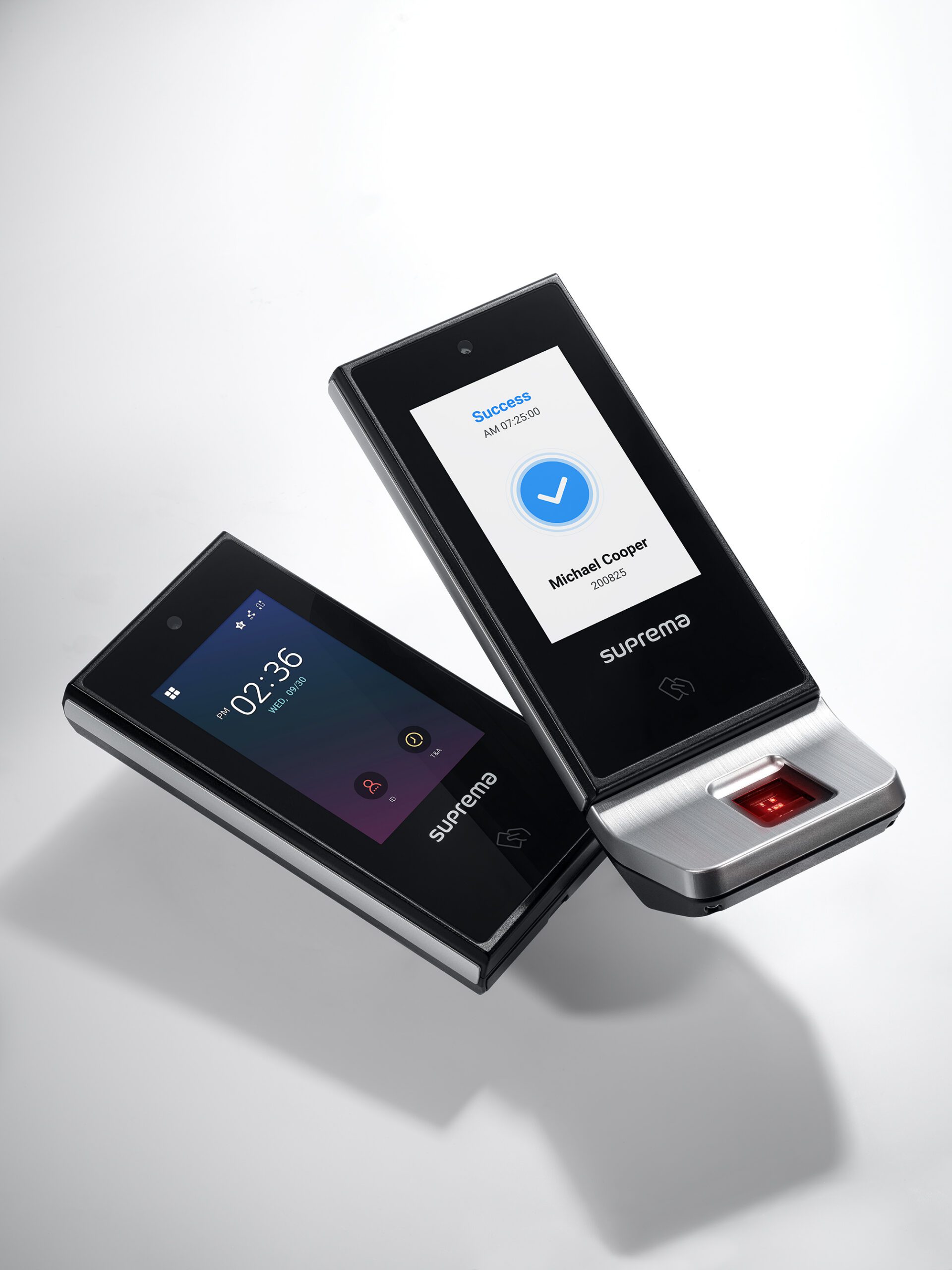

Suprema X-Station 2 is a versatile time and attendance terminal built for modern workplaces. Supporting RFID cards, mobile credentials, QR codes and optional fingerprint authentication, it provides a secure and scalable way to manage employee clocking, workforce visibility and access control across your organisation.
Flexible authentication for every workforce: Support multiple clocking methods including cards, smartphones, QR codes and optional biometrics—ideal for businesses managing mixed teams, phased upgrades or multiple sites.
Built for modern working environments: Whether deployed in offices, warehouses, manufacturing sites or shared entrances, X-Station 2 combines a fast user experience with robust durability and a modern touchscreen interface.
Easy to deploy and scale: With PoE support, simple installation and compatibility with wider workforce and access systems, X-Station 2 helps reduce deployment time and future-proofs your investment.
Enterprise-grade security: Encrypted communications, secure credential handling and advanced access protocols help organisations protect employee data and maintain compliance standards.
Ideal for Organisations Needing:
Employee time and attendance
Secure workforce clocking
Multi-site workforce management
Hybrid credential deployment
Speak to our team about deploying Suprema X-Station 2 across your organisation.
XS2-ODPB / XS2-DPB
125 kHz EM & 13.56 MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV3(1), FeliCa
XS2-OAPB / XS2-APB
125 kHz EM, HID Prox & 13.56 MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV3 1), FeliCa, iCLASS SE/SR/Seos
MIFARE, DESFire, iCLASS, HID Prox, EM: 50 mm / Felica: 30 mm
NFC, BLE
Supported (4)
Fingerprint
Supported
1.5 GHz Quad Core
16 GB Flash + 1 GB RAM
Supported
500,000(5)
100,000
Fingerprint: 500,000 Card: 500,000 PIN: 500,000
Card: 500,000 PIN: 5000,000
Fingerprint: 500,000 Card: 500,000 PIN: 500,000
Card: 500,000 PIN: 5000,000
Text 5,000,000 / Image 50,000
4″ IPS color LCD / 480 x 800 pixels
10/100 Mbps, auto MDI/MDI-X
1 ch Host or Slave (Selectable)
1 ch Input or Output (Selectable)
2 ch Inputs
1 Relay
USB 2.0 (Host)
IEEE 802.3af compliant
IP65
Supported
Voltage: 12 Vdc, Current: Max. 0.8 / Voltage: 24 Vdc, Current: Max. 0.5 A
82 x 208.5 x 52 (Bottom) / 25.9 (Top)
82 x 159 x 25.9
82 x 208.5 x 53 (Bottom) / 25.9 (Top)
82 x 159 x 25.9
-20°C ~ 50°C (-4°F ~ 122°F)
CE, UKCA, KC, FCC, IC, RCM, BIS, ANATEL, SIG, TELEC, RoHS, REACH, WEEE (XS2-DPB, APB) CE, UKCA, KC, FCC, IC, RCM, BIS, ANATEL, SIG, RoHS, REACH, WEEE (XS2-ODPB, OAPB)
(1) DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with X-Station 2.
(2) RF read range will vary depending on installation environment.
(3) Supports QR/Barcodes composed of up to 32 ASCII code strings.
(4) Requires a separate license.
(5) The number of users registered without any credential data.
