Unitech WD200 Plus (3rd Gen)

Unitech WD200 Plus: Integrated Mobile Data Capture Solutions by TouchStar

At TouchStar, we select only best-in-class rugged hardware to deliver a seamless mobile data capture experience. The WD200 Plus is a highly durable, high-performance device, uniquely validated by our engineering team for deployment in the most demanding Warehouse and Logistics environments. We don’t just supply the hardware; we integrate, configure, and support this solution end-to-end.

Download the Brochure

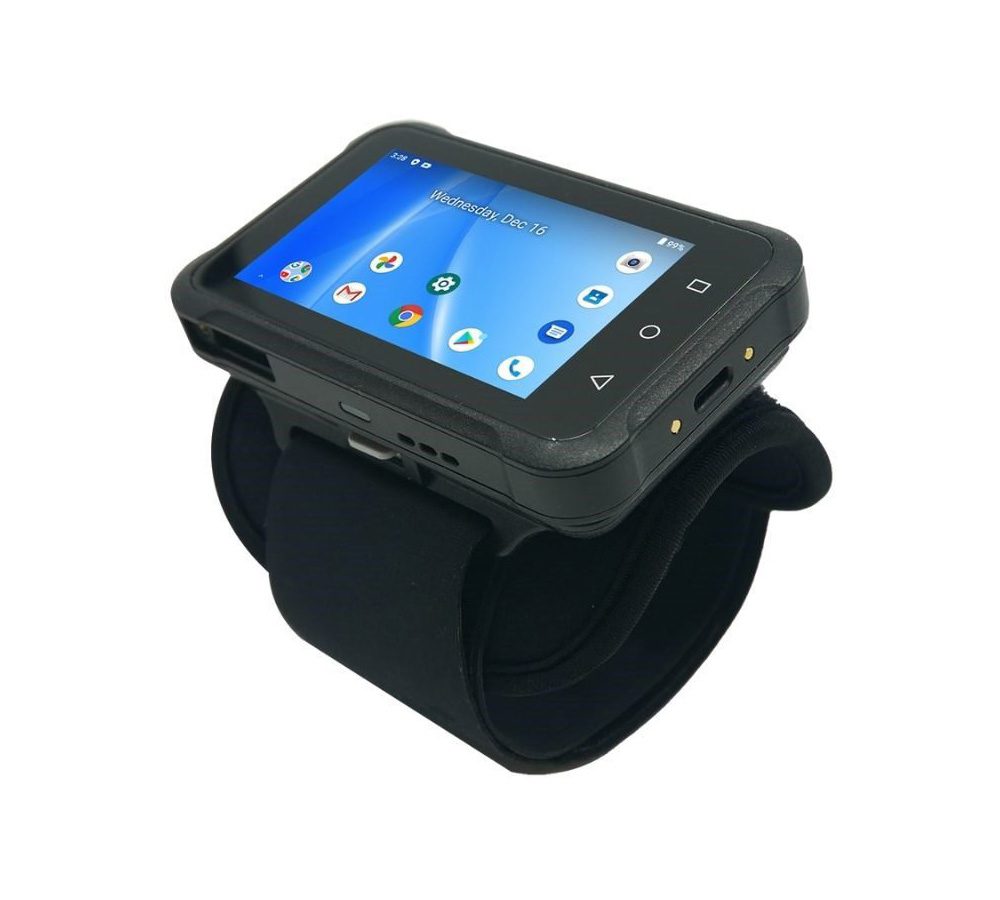

Unitech WD200

Why TouchStar

Unitech WD200 Plus:

Rugged Data Capture Power: Built to handle the toughest operational demands, the WD200 plus features IP68 rated dustproof and waterproof protection and a drop rating of 1.5m. This means minimal downtime, reduced repair costs, and uninterrupted data capture accuracy, even in harsh temperatures or wet conditions.

Optimised Operator Flow: Unlike general-purpose devices, the WD200 plus focuses on improving the operator experience. Its high capacity memory and powerful battery allows for continuous 24/7 operation, while the compact form factor reduces worker fatigue during intensive shifts.

Seamless Software Integration: The foundation of any successful mobile deployment is integration. We ensure the WD200 plus is fully compatible with your existing WMS/ERP systems, guaranteeing a true plug-and-play setup for your data capture needs.

View the Full Specification

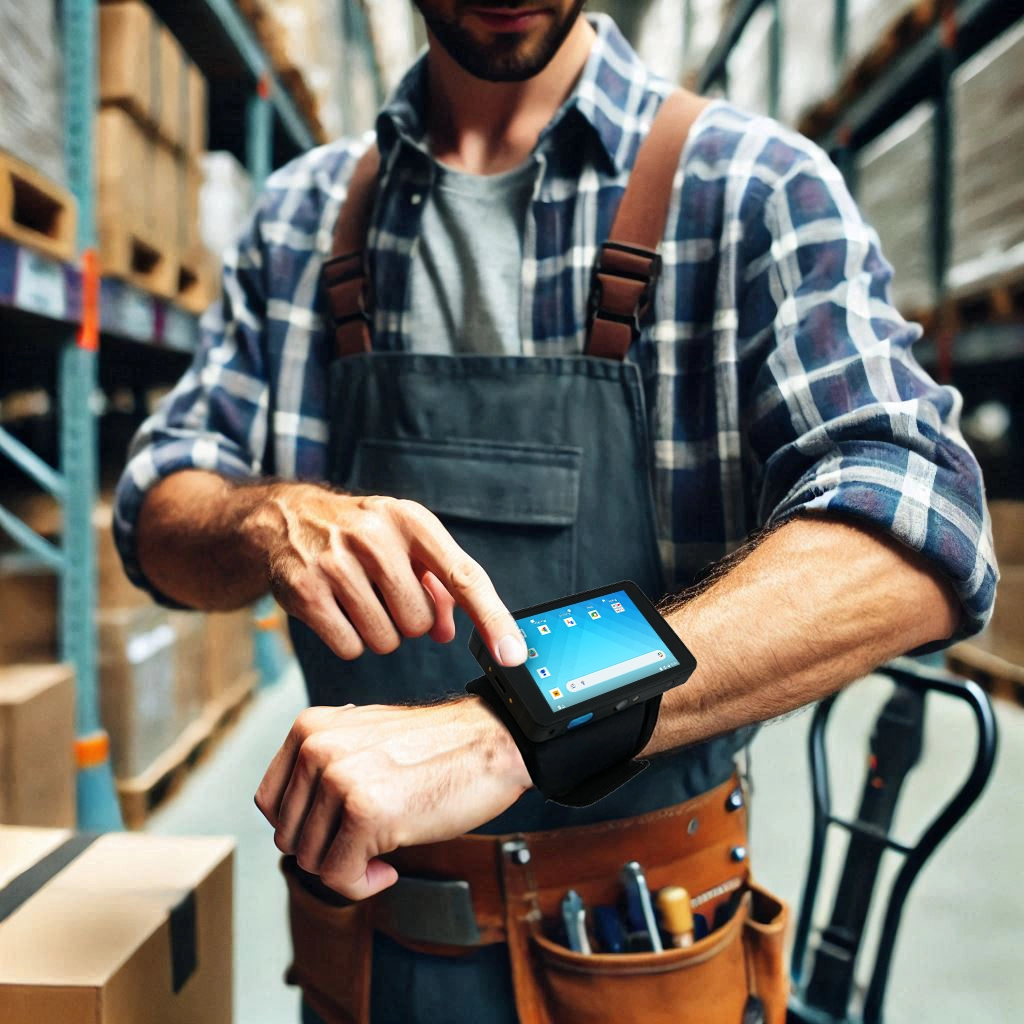

Unitech WD200 Plus (3rd Gen) Warehouse Image

The Unitech WD200 Plus Rugged Wearable Computer

Don’t just buy a device—invest in a fully supported mobile data capture solution. Get in touch with a TouchStar expert today to discuss pricing, configuration, or to request an on-site demo of the Unitech WD200 Plus.

Get in Touch

The latest development in our Rugged Mobile Computing blogs

Is it time to upgrade your rugged handheld computers

Rugged Mobile Computers

Optimised Rugged Mobile Devices Improve Productivity

Combining the deployment of rugged mobile computers with a strong support and service model ca...

Read more
PWS Rugged Case Study Image

Rugged Mobile Computers

TouchStar & PWS: 20-Year Partnership Powers Warehouse Efficiency with Rugged Mobile Tech

Discover how TouchStar’s rugged mobile computing solutions helped PWS streamline warehouse ope...

Read more
Rugged Handheld Device

Rugged Mobile Computers

Peak Season Survival Guide: How to Manage Rugged Devices Under Pressure

Download our free guide to preparing rugged devices for peak season. Learn how to avoid last-m...

Read more
KMS Transport

Rugged Mobile Computers

KMS Select TouchStar for Rugged PDA Solution

Seeking a more robust PDA solution that would support fulfilment operations, KMS turned to mob...

Read more

Specifications

Operation System

  • OS Android 13
  • GMS certified GMS certified
  • CPU Octa Core 2x A75 2.0GHz + 6x A55 1.8GHz
  • Memory RAM 4GB
    Flash 64GB
  • Languages support English, Simplified Chinese, Traditional Chinese,Japanese,Spanish, German, French, Italian,Portuguese, Korean and multiple languages

Display

  • Screen Size 3.54” Color TFT-LCD (960 X 640) High Resolution Display (500 nits)
  • Touch Panel Ultra sensitive capacitive touch screen, compatible with gloves and support wet resistance

Buttons / Keypad

  • Buttons / Keypad ON / OFF button , 1x User-defined function button

Camera

  • Camera 16 MP Rear and Flash Light

Indicator Type

  • Type LED, Speaker, Vibrator

RFID

  • HF RFID Support HF/NFC
    Frequency 13.56Mhz
    Support: ISO14443A/B, ISO15693 standard

I/O Interfaces

  • USB USB 2.0 (Type-C) support USB OTG
  • OTG Yes, over USB Type-C
  • POGO PIN Charging via cradle
  • Audio One 1W speaker with Smart PA

Power Source

  • Main battery 3.85V, 2500mAh Li-polymer battery (embedded, can be repaired)

Communication

  • Bluetooth® Bluetooth® 5
  • WLAN IEEE 802.11 ax/a/b/g/n/ac/d/h/i/k/r/v, IPv4, IPv6
    Security of Wi-Fi : WEP, WPA/WPA2 PSK, 802.1x EAP,OWE, SAE
    Fast Roaming : PMKID caching, 802.11r, OKC
    2×2 MU-MIMO
  • GPS GPS, GLONASS, Gallileo, Beidou
  • Sensors Gyroscope, G-sensor, E-Compass, Light Sensor

Software

  • MDM Software SOTI, 42Gears, MoboLink, VMware

Enclosure

  • Dimensions ( W x H x D ) 96.7mm x 60.7mm x 14.43 mm
  • Weight 123g (with battery)

Durability

  • Drop Specification 1.5 meter, MIL-STD 810G
  • Sealing IP68
  • Tumble test 1,000 tumbles @ 1.6 ft./0.5 m

Environmental

  • Operating temperature -4°F to 122°F (-20°C to 50°C)
  • Storage temperature -4°F to 158°F (-20°C to 70°C)
  • Charging temperature 0°C to 45°C
  • Relative Humidity 5% ~ 95% (non-condensing)

Accessories

  • MS633 Bluetooth 2D Ring Scanner (PN#MS633-DUBU00-SG、PN#MS633-OUBU00-SG(LR))
  • MS652 Plus 2D Bluetooth Ring Scanner(PN#MS652-AUDB00-SG)
  • MS622 2D Cord Ring Scanner(PN#MS622-2UCB00-SG)
  • MS912 Plus 2D Bluetooth Pocket scanner (PN#MS912-2UBB00-SG)
  • MS912 Plus 1D Bluetooth Pocket scanner (PN#MS912-FUBB00-TG)
  • MS926 2D Bluetooth pocket scanner (with display)(PN#MS926-UUBU00-SG)
  • MS916 1D Bluetooth pocket scanner (with display)(PN#MS916-8UBU00-SG)
  • RP902 Bluetooth UHF RFID Pocket Reader(PN#RP902-33E8S0G (EU) RP902-43A8S0G (US) RP902-43F8S0G (JP))
  • 4-Slot Terminal Charging Cradle (PN#5100-900030G)
  • 9H Glass Screen Protector (PN#5400-900068G 10pcs with Packing)
  • WD200 Wrist Holder Kit(Bracket,Strap,Pad)(PN#3210-900026G)
  • WD200 Replacement Pad for Wrist Holder (PN#386215G, 5400-900043G 10pcs with packing)
  • WD200 Replacement Strap for Wrist Holder(PN#609032G, 5400-900044G 10pcs with packing)
  • WD200 Replacement Bracket for Wrist Holder(PN#608941G)
  • USB 2.0 type-C Cable (PN#1550-905919G)
  • Power Adapter(EU,UK,US,AU)(PN# 1010-085001G)
  • 5V/2A Adaptor with universal plugs(PN#1010-900067G)
  • Power Adaptor (US,EU,UK) (PN#1010-900073G(US) (PN#1010-900074G(EU) (PN#1010-900065G(UK) )
  • Quick charge UK USB plug (PN#1010-51C002G)
  • Professional armband strap – Normal size(28cm) (PN#5500-100002G)
  • Professional armband strap – Large size(30cm) (PN#5500-100003G)
  • Professional armband strap – Small size(16cm) (PN#5500-100004G)
  • Head-Up Display
  • Bluetooth noise cancellation headset
  • Dimension Detector

What comes in the box

  • The standard package contents
  • WD200 Plus Terminal
  • USB 2.0 Cable (Type C)

Warranty

  • Hardware Warranty 12 months
  • Statement This product is warranted against defects in workmanship and materials for a period of twelve months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
